Stainless Steel Electrical Bracket

In business since 1957, RB Tool & Manufacturing Company has continued to meet the stringent and increasingly complex demands of the aerospace industry. Our advanced knowledge of the industry, combined with our state-of-the-art facility, enables us to manufacture low volumes of precision, specialty components in a cost effective manner.

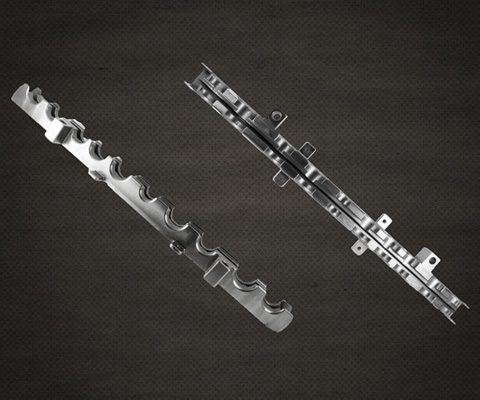

The stainless steel bracket pictured, is used as an aircraft wire harness, and is manufactured in quantities from 75-100 per year. Raw stock is milled to size, then utilizing an innovative technique developed in-house for executing wire EDM on parts over 12.875″ in height, the bracket was machined to tolerances of ±0.002″. Secondary operations consist of polishing to the required profile and finish then engraving the identification data.
Stainless Steel Electrical Bracket

Quality is of paramount importance to us at RB Tool. Our continual investment in precision test and measuring equipment allows our QC team to verify that we meet customer specifications for this project, each time, every time. If you are interested in learning how our extensive knowledge of advanced manufacturing and the aerospace industry can benefit your next project, contact us today.

Highlights of this Project

  • This part is used as a Wire Harness in airplanes

Primary:

    • CNC Milling
    • Wire EDM Boot Leg

Secondary:

    • Part Engraving
    • Polishing
  • Vertical Mill
  • Wire EDM
  • Length: 12.875″
  • Height: 4.000″
  • Width: 1.5000″
  • ± 0.002″
  • Stainless Steel – AMS 5645 or AMS 5510
  • Polished Finish
  • CMM
  • Dimensional Inspection
  • Visual Inspection
  • Aerospace
  • 75 – 100 pcs/year
  • 5 – 6 Weeks
  • FOB Origin
  • ISO 9001:2008
  • Customer Specifications, 2D CAD Drawing
  • Electrical Bracket
